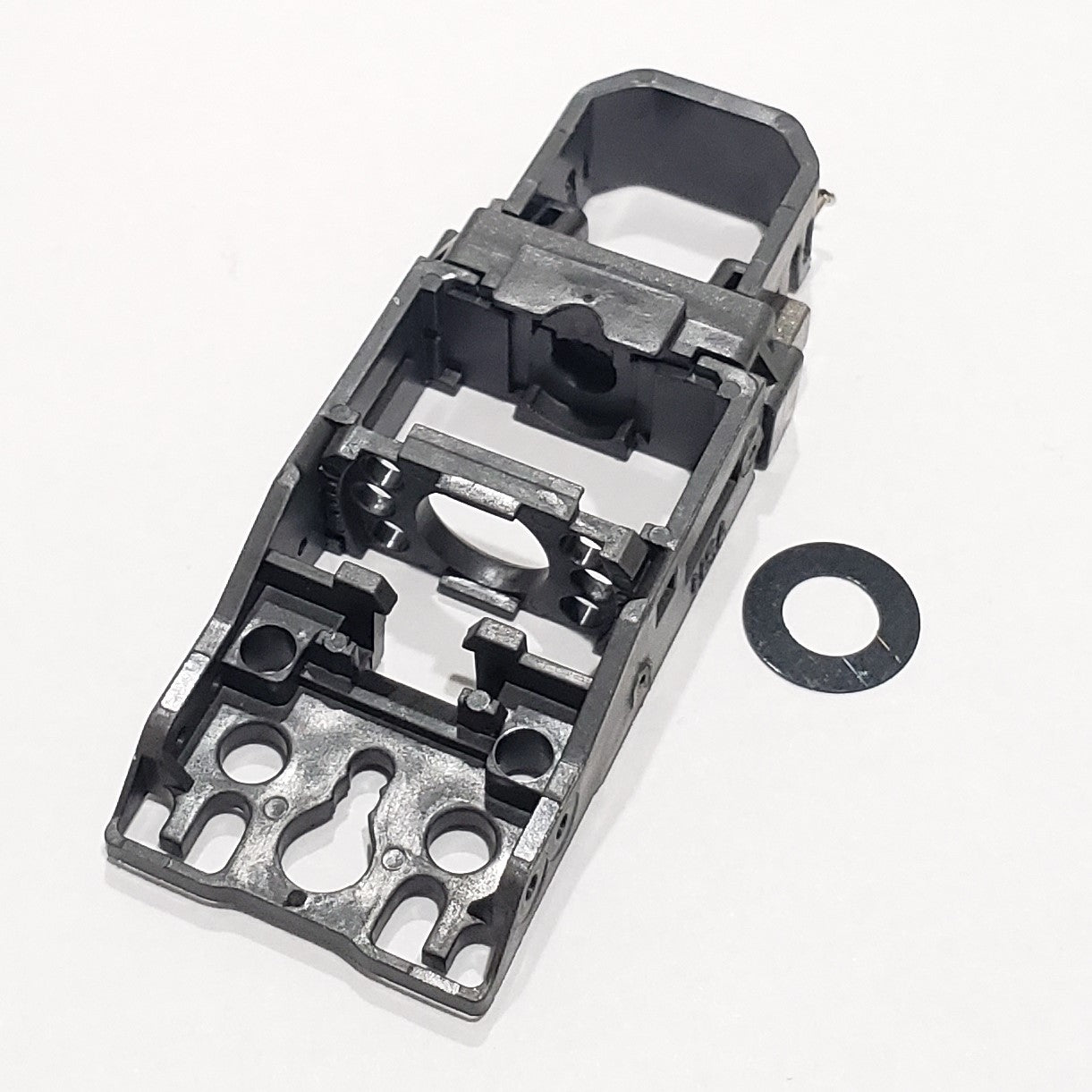

VIPER V1 CHASSIS SG+ UPGRADE

The “V1” is a multipurpose inline platform that is based on the very popular and successful Tomy Super G+.  The V1 is the ultimate upgrade for any Super G+.  It can also be used to build a high-performance race car for multiple classes.      All parts from the Super G+ are interchangeable with the V1 chassis with the only exception being the thicker traction magnets (Pro 4 Included). Chassis will accept stock Tomy body clip or F1 bodies. The V1 is lower, lighter, more durable and FASTER!!!   After assembly please make sure your rear hubs are not rubbing on the magnets. Combine with Complete Viper rear end set up 12516 for the ultimate in tunability and performance.

• Rear axle pin hole locators.  Allows easy pinning of rear axle.
• Lightened rear end features.
• Handling ‘tunnels’ under the chassis.  Area was relieved several thousandths to allow clearance for high rails.  Mimics a sanded chassis effect. Lightened front end features.
• Front bumper.
• Lightened timing bracket.
• Chassis clip has relief cutout for ease of rear bushing oiling.
• Chassis has more generous dimensions in the motor box that eliminates Tomy ceramic motor magnet binding.  Eliminates the need to sort ceramic motor magnets according to length.
• Comes with V1 chassis without molded post, magnet clip, lightweight timing bracket and
• Pro 4 traction magnets.

CLICK HERE PINNED REAR AXLE EXPLAINED
