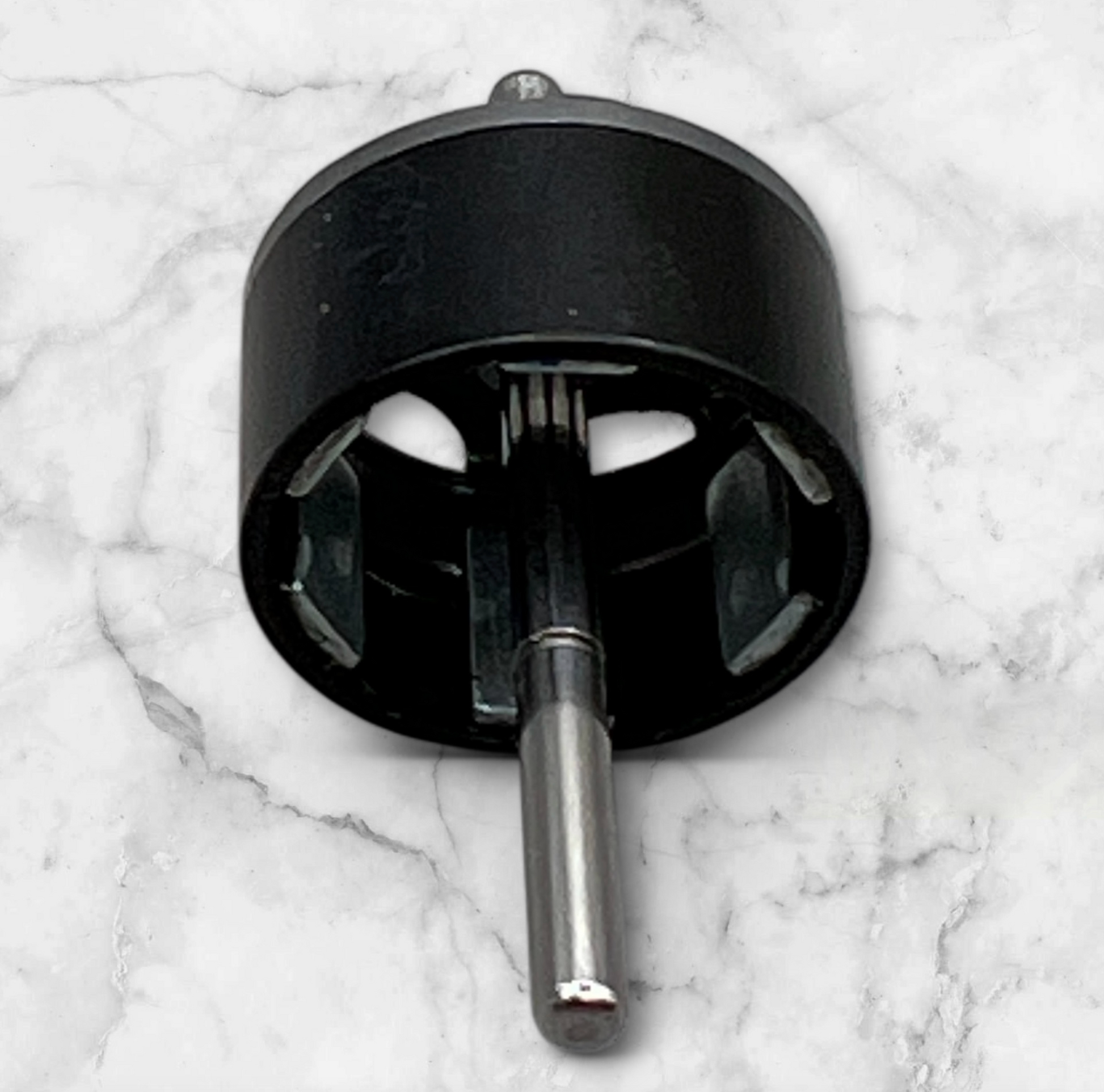

KC RACING SIX MAGNET ROTOR AND SHAFT

BM-1106.6MAG - 6 Magnet Rotor & Shaft

for the advanced brushless racer only

Purchasing this component signifies that you have read and understand the complete description for this assembly.

This is a 1106 - 6 magnet rotor and shaft assembly only.  You must use and convert an existing 1106 KC Racing or Brushless Mafia High Kv BLDC to have a complete motor.

Changing out your 12 magnet rotor and shaft to the 6 magnet rotor and shaft increases the unloaded Kv rating of the original BLDC.

The assembly is computer balanced by the manufacturer.

Pinion Shaft Diameter: 2.0mm x 10.00mm long

Snap ring groove on the shaft will accept the original snap ring and spacer should you desire to install.

Rotor Side Shaft Diameter: 2.00mm x 6.0mm long

7075-T6 Aluminum Bell

Brushless Mafia multicolor color design

No Kv rating engraved on the rotor

Includes 6-mag rotor and shaft only.

Purchasing this item the user understands that this is an experimental component.  No warranty or guarantees of compatibility with ESC's, performance or suitability of use is provided.

This component should be used by a seasoned brushless system user only.

It is up to the user to observe BLDC heat, ESC compatibility to preventing cogging and use of suitable ratios to prevent ESC and/or BLDC failures.

The rotor and shaft assembly is designed to as a direct fit replacement for a KC Racing or Brushless Mafia High Kv 1106 BLDC.
