KC RACING SPRING STEEL BRUSHLESS WING CAR CHASSIS

Chassis Assembly Drawing

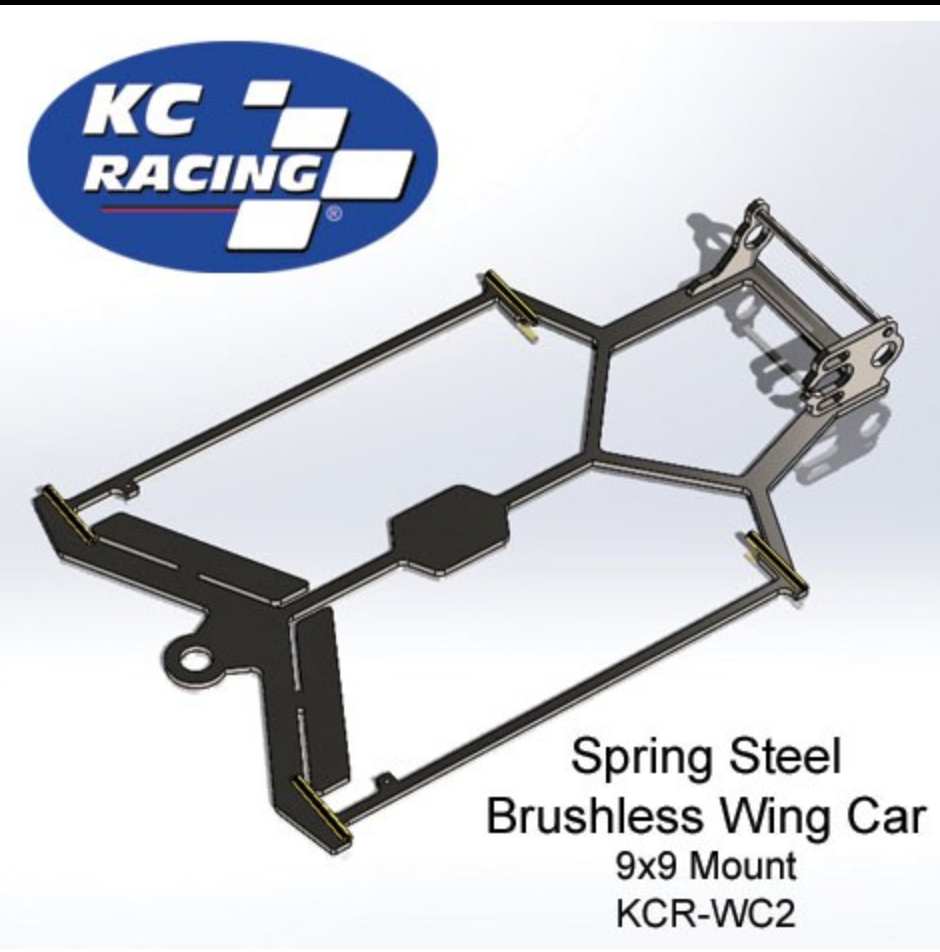

KCR-WC2 - 3D computer modeled chassis design with 0.05” 1095 Blue Spring Steel Steel. The spring steel chassis has been tumbled to remove sharp edges. Axle uprights and motor mounting are manufactured from 304 stainless steel.

 Designed for:

    3/32” rear axle

    3/16” diameter axle bearing holes

    9x9 motor mounting

What you receive - Metal parts only, pin tubing and upright cross bar are customer supplied items.

This is a kit - nothing is assembled - Photos are to aide your assembly.
