KC RACING MOTOR SCREWS - M2 x 4MM BUTTON HEAD

KCR-M24BH - Button Head Motor Mounting Screws (12 pieces)

Used where the screw head needs to be thinner than a socket head capscrew for gear clearance.

When used on BRUSHLESS MOTORS care must be taken to make sure the screw does not touch the motor windings.

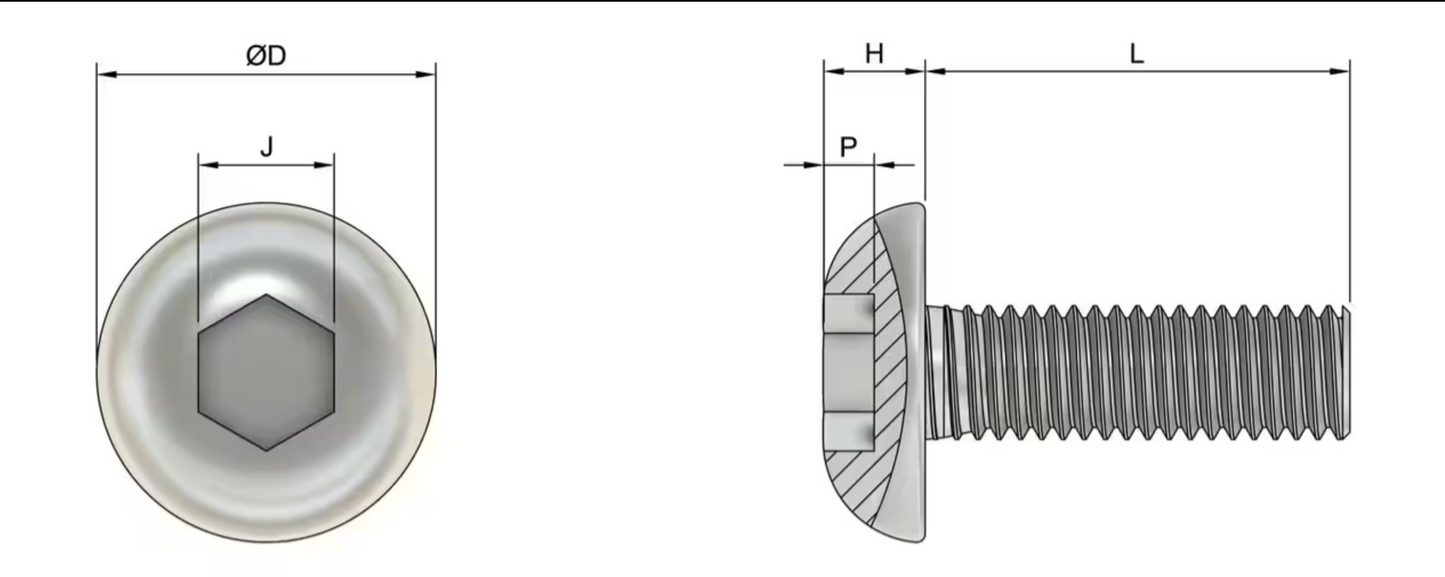

Dimensions:

Head Diameter (OD) - 3.5mm [+0/-.2]
Head Height (H) - 1.3mm [+0/-.2]
Socket Depth (P) - 0.8mm
Hex Socket Size (J) - 1.3mm
Thread Length (L) - 4mm
