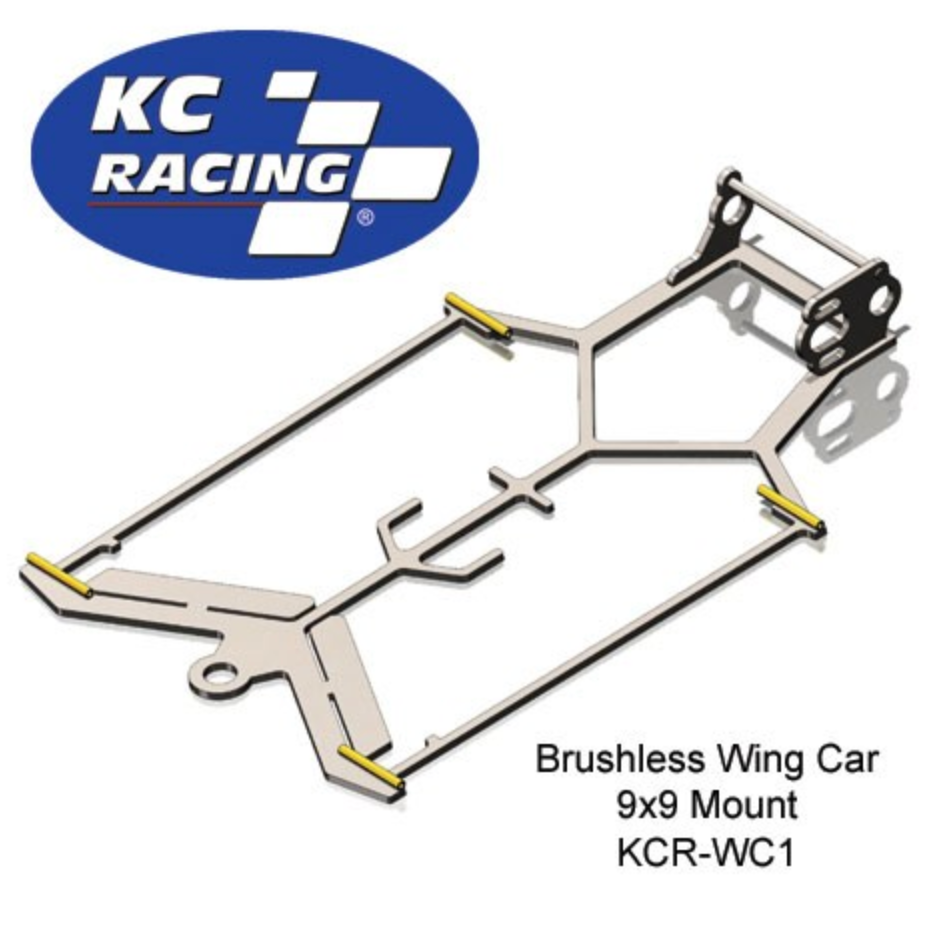

KC RACING BRUSHLESS WING CAR CHASSIS

KCR-WC1 - Designed for 9x9 motor mounting

Initial testing of the chassis

Continued testing of the chassis

Chassis Assembly Drawing

3D computer modeled chassis design with .05” 301H Stainless Steel - Axle uprights and motor mounting Chromoly - If you have a hard crash the chassis may bend.

 Designed for:

    3/32” rear axle

    3/16” diameter axle bearing holes

Precision laser cut for ease of assembly

Kit part weight 19.8 grams

What you receive - Metal parts only, pin tubing and upright bar are customer supplied items.

This is a kit - nothing is assembled - Photos are to aide your assembly.
