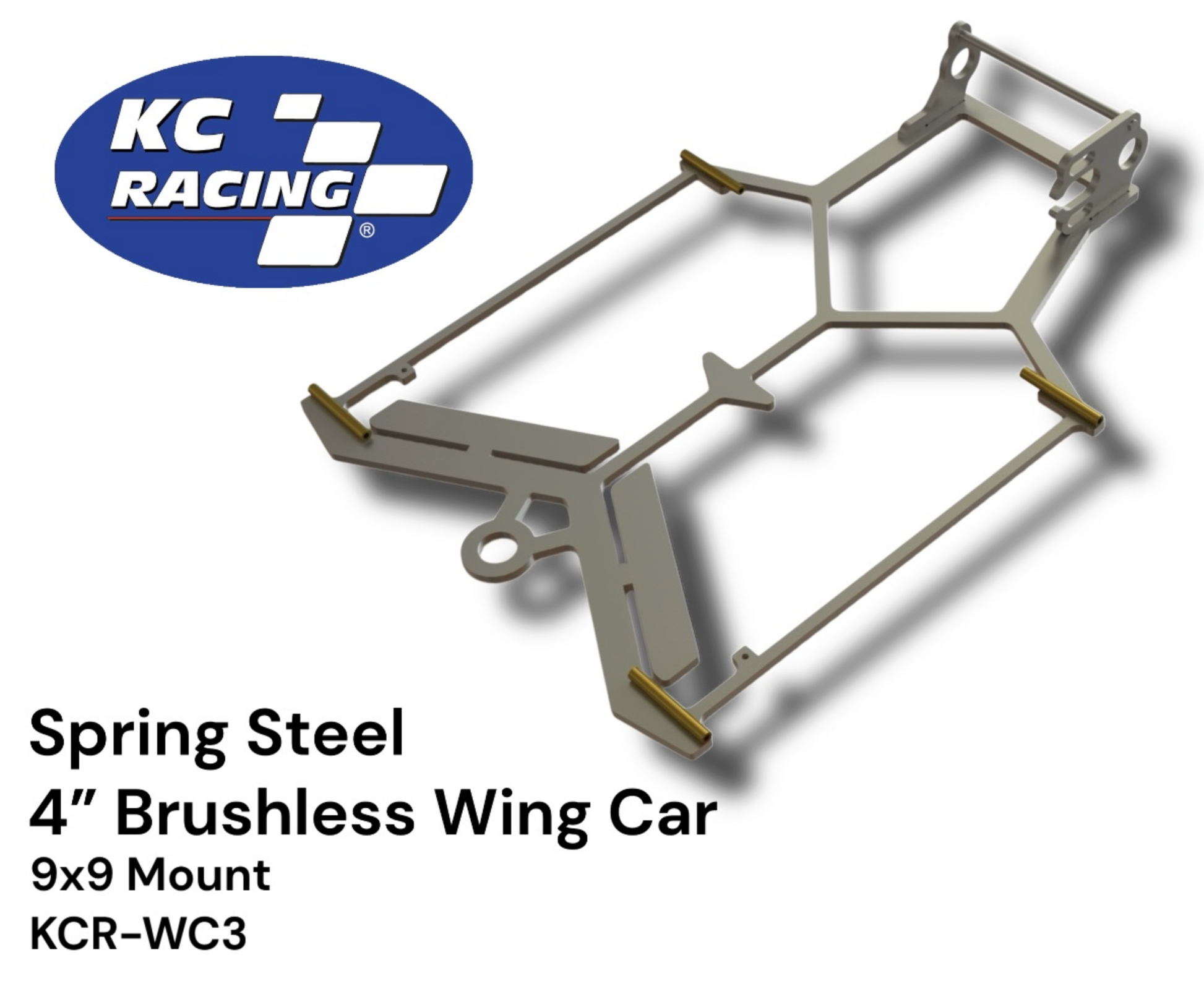

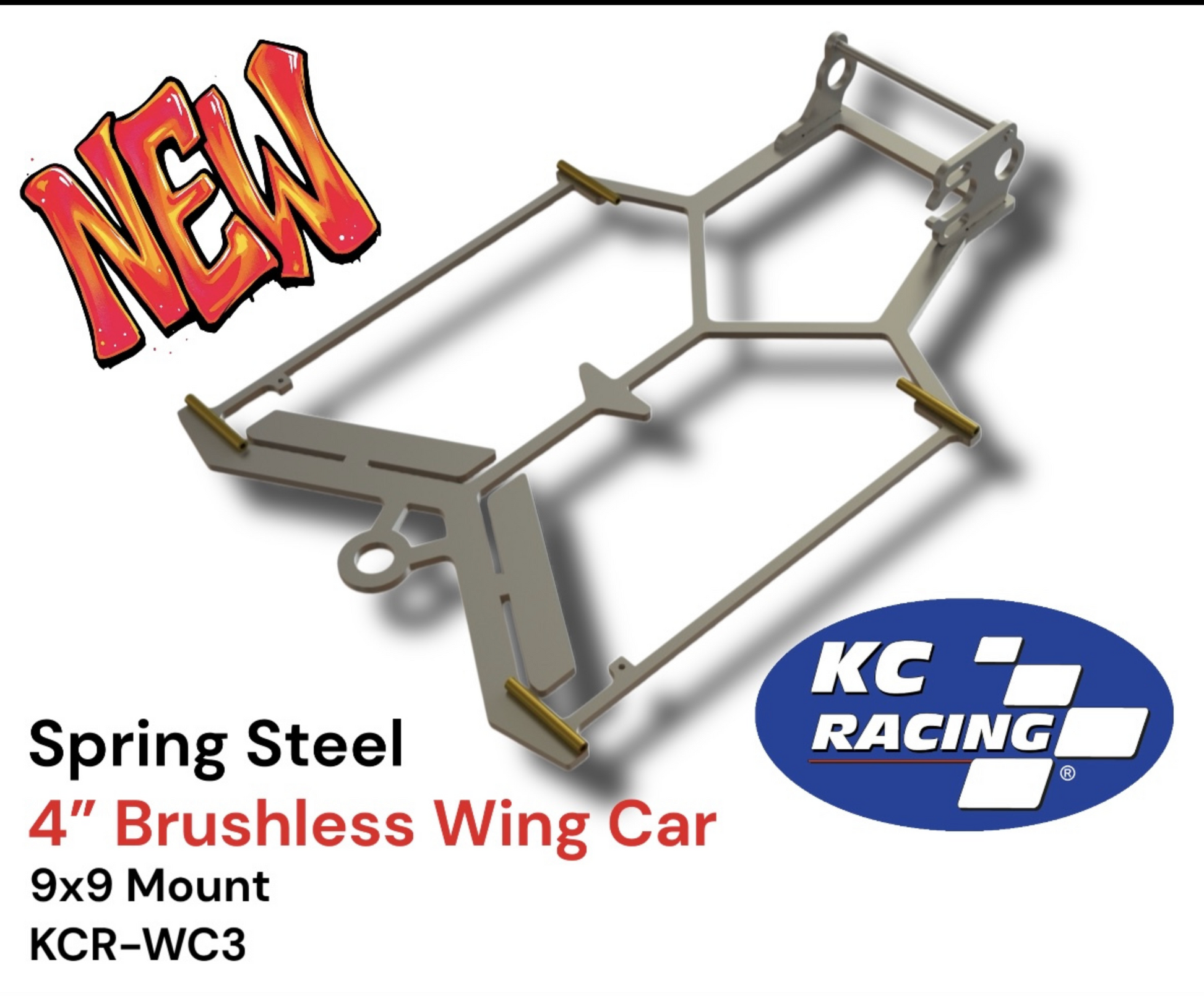

KC RACING 4" BRUSHLESS WING CAR CHASSIS KIT

KCR-WC3 - 3D computer modeled chassis design with 0.05” 1095 Blue Spring Steel Steel. The spring steel chassis has been tumbled to remove sharp edges. Axle uprights and motor mounting are manufactured from 304 stainless steel.

Designed for:

• 3/32” rear axle

• 3/16” diameter axle bearing holes

• 9x9 motor mounting

Chassis Assembly Drawing

What you receive - Laser parts

The upright cross bar and pin tubes are customer supplied parts.

This is a kit - nothing is assembled - Photos are to aide your assembly.
